- Place of Origin:
-
China
- Model Number:
-
50kva diesel generator
- Rated Voltage:
-
230V/400V, 380V/415V
- Rated Current:
-
24V
- Speed:
-
1500RPM/1800RPM
- Frequency:
-
50HZ/60HZ
- Type::
-
Open Frame / Silent Type
- Engine::
-
cumminsengine/UK engine,Ricardo,Weichai, et
- Color::
-
According To Customers' Requirement
- Warranty::
-
12 Months
- Certifiwith CAT enginee::
-
CE, ISO, SONCAP
- OEM::
-
Accepted
- Option::
-
ATS, famous brand breaker, etc
- Packaging Details
- Standard export package
- Port
- CHINA FUZHOU XIAMEN SHANGHAI GUANGZHOU
- Picture Example:
-
Factory use 50kva diesel generator set 3 phase alternator 50kw silent electrical generator price for sale dynamo generator
Diesel Generator Search Table | |||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| ||
MODEL | 25KVA Diesel Generator | 50KVA Diesel Generator |
Type | Vertical,warer cooling | Vertical,warer cooling |
Combustion chamber type | Direct injector | Direct injector |
Number of cylinders | 4 | 4 |
Bore(mm) | 90 | 105 |
Stoke(mm) | 105 | 118 |
Compression ratio | 18 | 18 |
Total displacement(L) | 2.67 | 4.087 |
Firing order | 1-3-4-2 | 1-3-4-2 |
Rated power(KW) | 24/1500 28/1800 | 63/1500 70/1800 |
Min.specific fuel consumption at full load (g/kW.h) | ≤243 | ≤220 |
Intake Type | Natural Aspiration | Turbo-charget with intercooler |
Cooling methed | Forced watercooling | Forced watercooling |
Starting methed | Electric | Electric |
Flywheel size | SAE7.5” | SAE10”orSAE11.5” |
Bell housing size | SAE4# | SAE3# |
NET mass | 240 | 350 |
Overall dimensions(L*W*H)(mm) | 716*530*670 | 892*618*740 |
Product Description:
1.Our cooperate with famous diesel engine: powered by with Cummins engine, with Perkins engine, with Deutz engine, Lovol, Doosan, Weichai, Weifang, Yangdong.etc

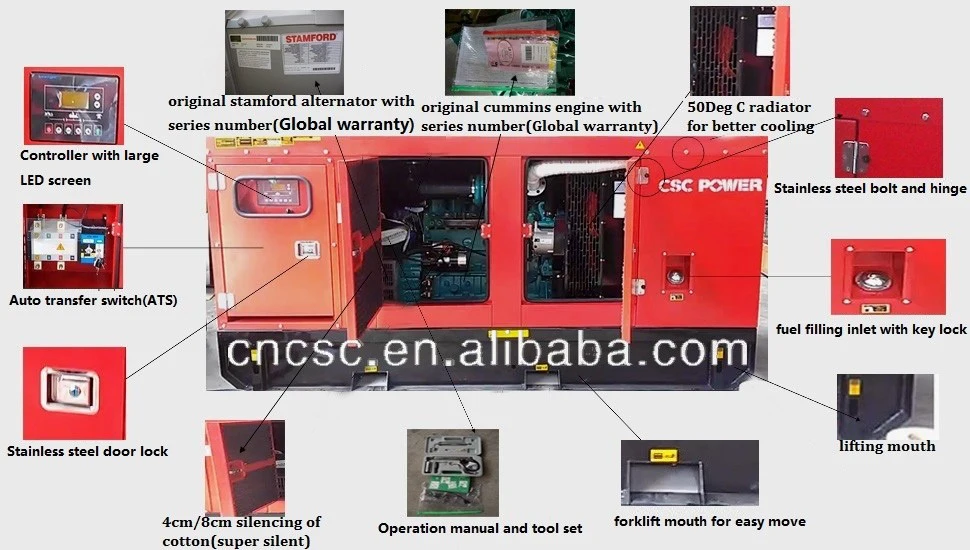

2.50kva diesel generator set top cover has 3 doors for easy maintenance
3.The radiator is 50Deg C instead of 40 Deg C which is better for cooling.(CSCPOWER unique)
4. Canopy color can be painted free of chargeby customer demand(order more than 2sets). It is high quality power coated paint.
5.All connection components and door lock are stainless steel.
6. we added oil filling inlet with key lock

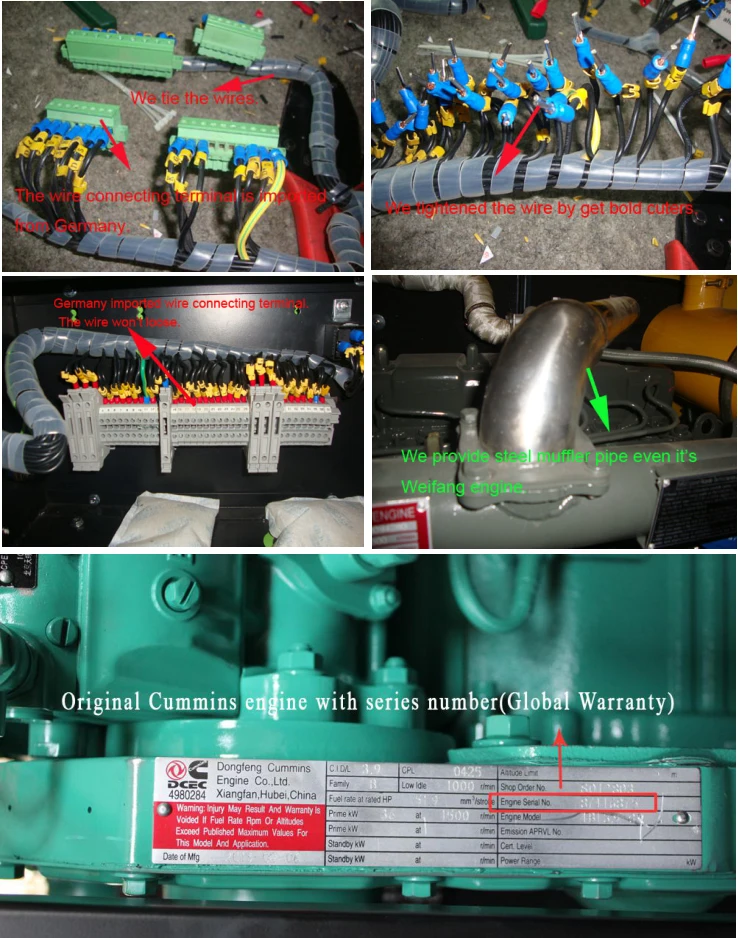

7. The fuel tank is separate made and then welded to the base frame, not by simple welding on the base frame. It is to make sure there is no oil leakage(CSCPOWER unique)
8.Silent diesel generator base with forklift for easy loading and unloading
9. Fornoise level, we use more thicker Sound attenuation cotton, so the noise level is only 70-73DB at 7m. Super silent is 60-65DB at7m.
10. For diesel generator specifications or issues, we can support you through our strong technical team.
diesel generator / silent diesel generator / 3 phase diesel generator / diesel generator price / diesel generator for sale
Diesel generator picture:
Advantages of Silent Diesel Generator :
FAQ:
